PNK PP 400V Piston vacuum pump
Motor power(50Hz): 0.25Kw
Pumping speed (50Hz): 60L/min
Extreme vacuum limit: -92Kpa
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK PP-V Series piston vacuum pumps Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK PP 400V |
|---|---|---|---|
| Flow | L/min | 50 Hz | 60 |
| Pressure | Kpa | 50 Hz | -92 |
| Power | Kw | 50 Hz | 0.25 |
| Rotate speed | min-1 | 1450 | |
| Electric current | A | 50 Hz | 0.95 |
| Voltage | V | 50 Hz | 210/235 |
| Foot hole | mm | 6 | |
| Temperature | ℃ | 5-40 | |
| Noise | (ENISO2151) | dB(A) | 58 |
| Weight | kg | 5.5 | |
| Mounting dimensions | mm | L150*W112 | |
| Overall dimension | mm | L188*W128*H186.3 |

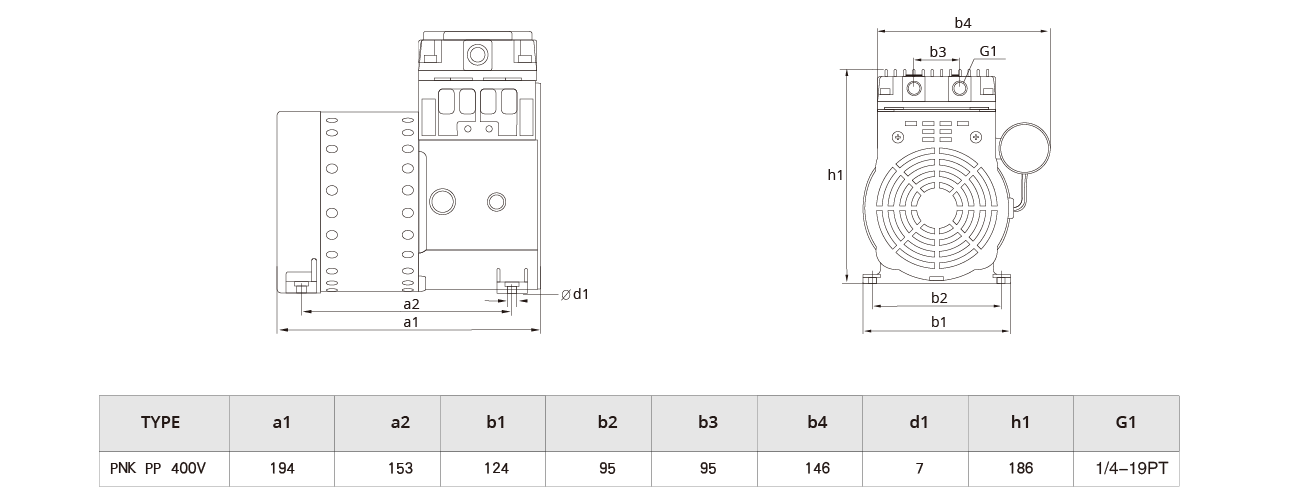

Mounting dimensions

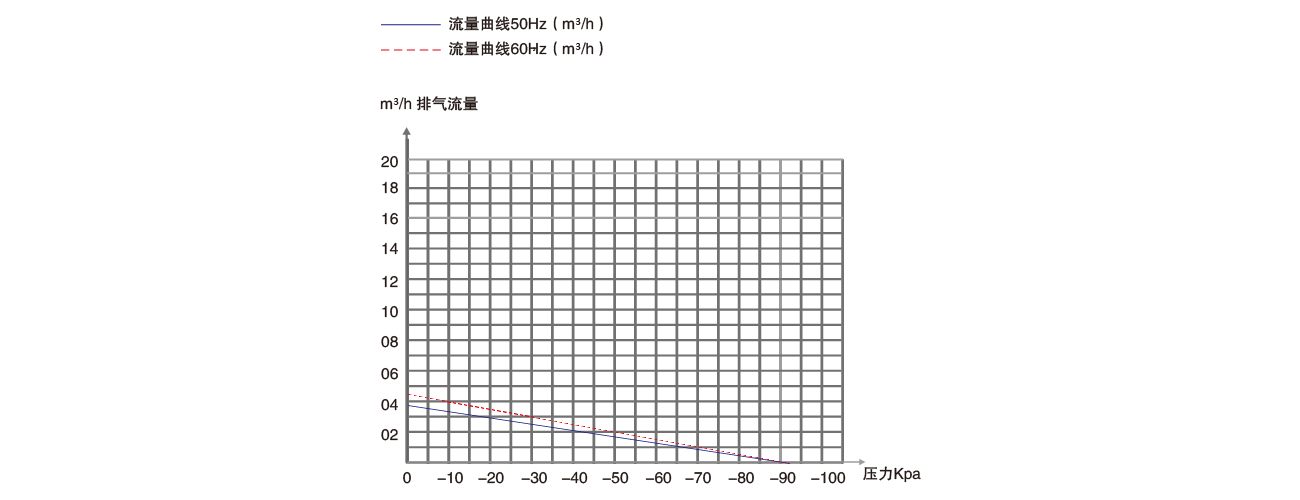

Performance curve
Parts
Download
